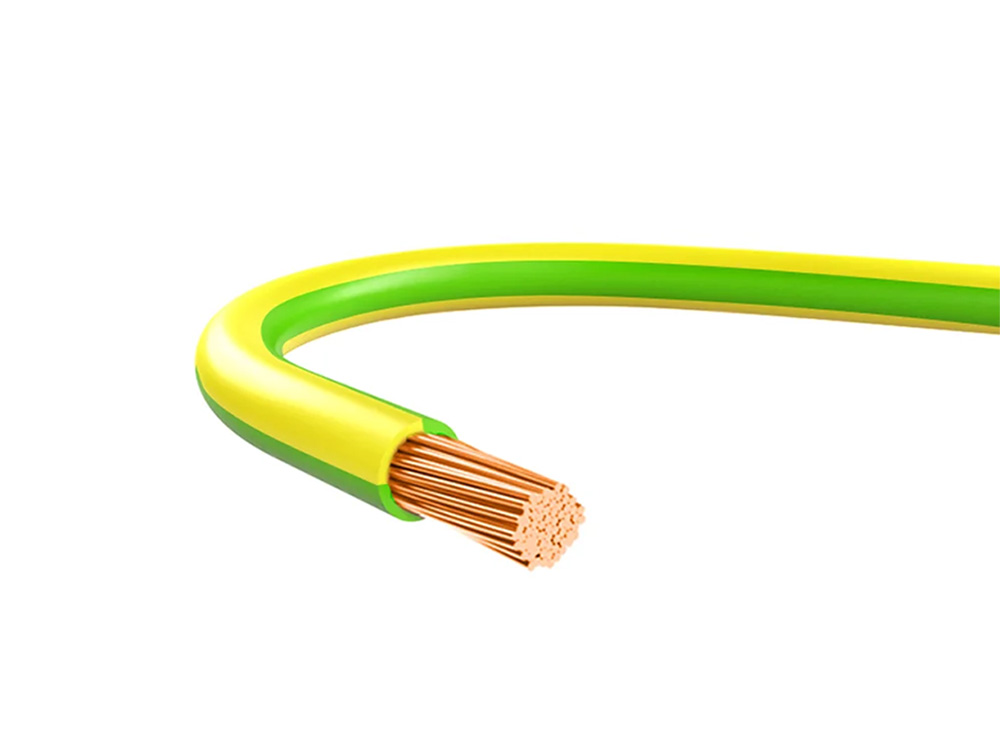

LGY cable

LGY electrical cables are versatile and suitable for a variety of installations. They consist of a single, flexible copper conductor and highly resistant PVC insulation. The product complies with the harmonized H07V-K standard and is designed for operation at a rated voltage of 450/750V.

Technical specifications:

• Cable type: LGY (H07V-K)
• Number and cross-section of veins: 1 x 6 mm²
• Operating voltage: 450/750V
• Test voltage: 2500V
• Insulation resistance: min. 10 MΩ x km
• Minimum bend radius: 4x outer diameter
• Radiation resistance: do 80×10⁶ cJ/kg (80 Mrad)
• Outer diameter: od 4,4 mm do 5,3 mm
• Weight of copper: 58 kg/km

These cables are suitable for applications requiring flexibility and durability in harsh environments.
