Description

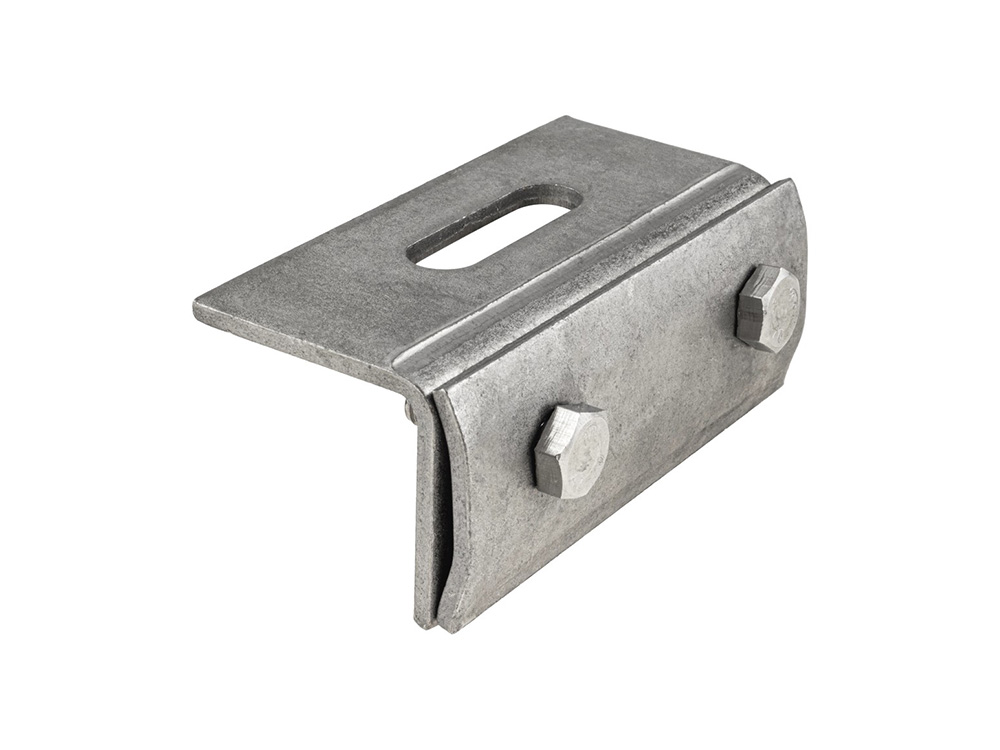

The standing seam metal roof bracket is a dedicated mounting element for photovoltaic installations on roofs covered with standing seam metal. Made of high-grade stainless steel, it guarantees durability, stability, and complete corrosion resistance, even in extreme weather conditions.
Technical parameters
- Material: Stainless steel (1.4016)
- Plate dimensions: 40 × 90 mm
- Total length: 90 mm
- Mounting hole: 11 × 40 mm (for M10 bolt)
Compatibility
The bracket fits standard PV mounting systems. The 11 x 40 mm mounting hole allows for easy connection to aluminum rails using an M10 bolt and nut, making integration into existing support structures simple.
Easy assembly
Installation is quick and intuitive – simply slide the holder onto the edge of the seam and tighten the clamping screws (A2 steel) with an Allen key. No drilling or additional seals are required, reducing the risk of errors and speeding up installation.
